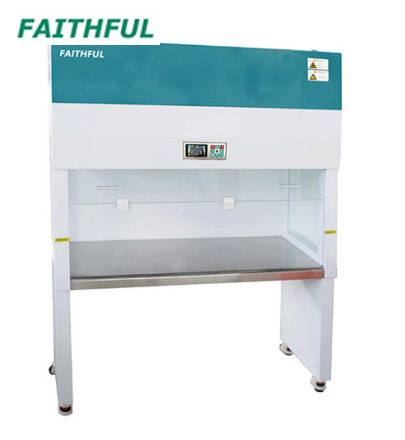

Nouvelle armoire à flux laminaire

État de disponibilité:
Quantité:
  • CJ-1dii, CJ-1SII, CJ-2Dii, CJ-2SII, CJ-2DIII, CJ-2SIII, CJ-3DIII, CJ3SIII
  • FAITHFUL

Product Description:

1.Vertical manifold and quasi- -closed 304 stainless steel table surface can effectively prevent external gas penetration into the operating clean area.

2. Centrifugal fan, stable speed, low noise, light touch air volume control system, five-stage wind speed control, speed 0.2- 0.6m/s adjustable, (initial: 0.6m/s; Final: 0.2m/s).

3. High quality air filter without partition, good purification effect.

4. LCD color screen controller (with sterilization timer, built -in socket instrument controllable switch, front window status display, can set three interlock,cumulative work timing, remote control).

5. CJ-1 II,CJ-2DIII, CJ-1SIII, CJ- -2SllI: wind speed sensor.

6. Automatic cutting off UV lamp function by opening glass.



Model

CJ-1D II

CJ-1SII

CJ-2D II

CJ-2S II

CJ-2D IIICJ-2S III
CJ-3D III
CJ-3S III

Applicable Station

one operator one side

one operator two sides

two operators one side

two operators two sides

 Airflow Direction

Vertical

Function

Cleanliness

Class 100

Collection Efficiency

0.3um particle ≥99.995%

Colony Count

≤0.5/vessel (petri dish is φ 90mm )

Wind Speed

initial: 0.6(m/s),final:0.2 (m/s)

Wind Speed Range

0.2-0.6 (m/s)

Noise Level

≤62db

Vibration Semi-Peak Value

≤3um

Illumination Intensity (Lx)

≥500LX(Activity Center)

Work Surface Bearing

50kg

Composition

Inner Chamber

SUS304 Stainless steel plate

Outer Shell

Cold rolling steel electrostatic spraying exterior

Operation door

Tempered Glass

HEPA Filter (mm)

900*640*50 one piece

1300*640*50 one piece

Pre-Filter (mm)

464*360*5 one piece

712*360*5 one piece

Fluorescent Lamp

16W*2

24W*2

UV Lamp

20W*1

30W*1

Top Fan

180W one piece

180W two pieces

Rated power

240W

440W

Controller

Display

LCD color screen

Wind Speed Control

Intelligent multi-level adjustable

Additional Function

Built in 2 multi-purpose sockets, high- efficiency filter, sterilization lamp replacement prompt,  foot level adjustment, lighting sterilization one key on/ off

Specification

Inner Size (W*L*H)(mm)

920*690*550

920*690*550

1320*690*650

1320*690*550

Exterior Size (W*L*H)(mm)

1060*763*1834

1060*763*1834

1460*763*1834

1460*763*1834

Packing Size (W*L*H)(mm)

1210*885*1999

1210*885*1999

1610*885*1999

1610*885*1999

Max Power of universal socket

Single socket: 800W

Current Rating (50/60Hz)

AC220V/1.8A

AC220V/3.6A

NW/GW kg

160/200

165/205

200/250

205/255
